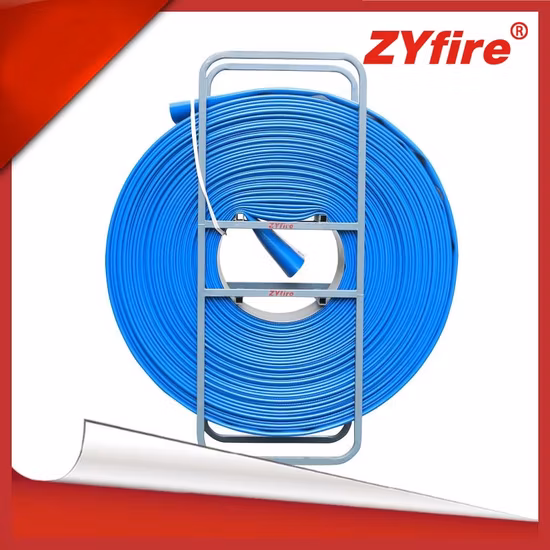

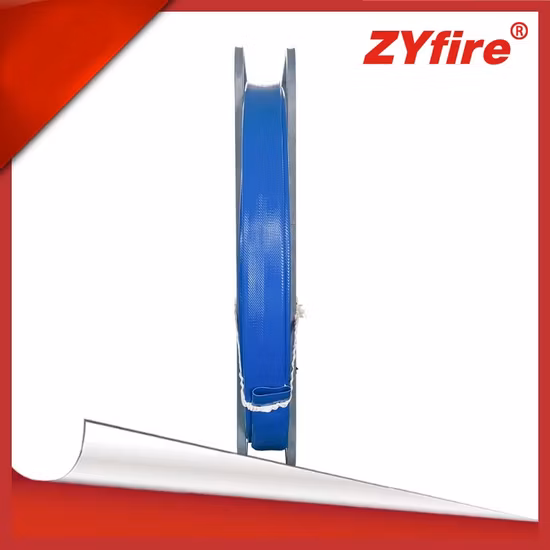

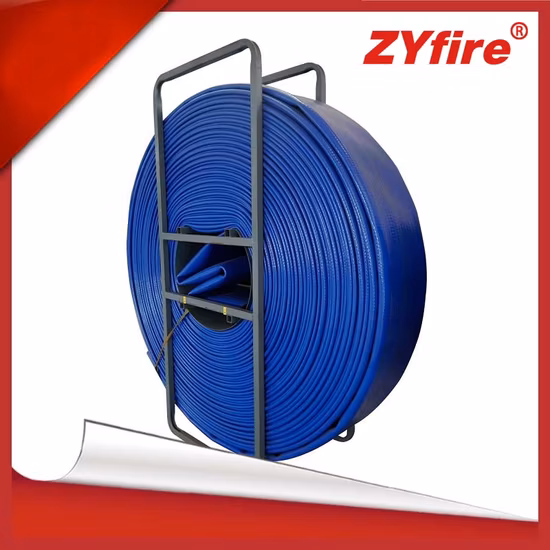

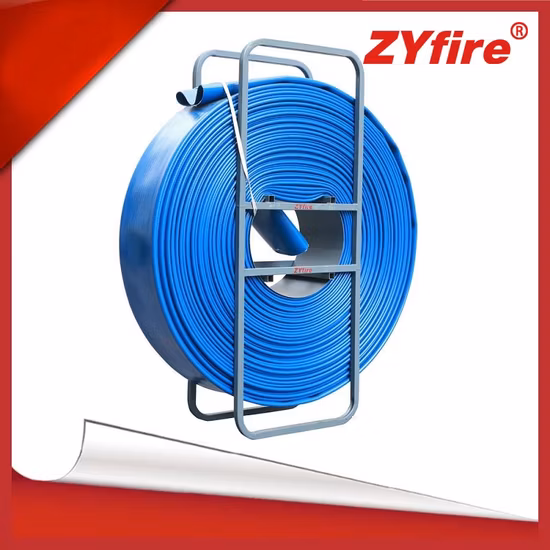

200 Meters TPU Lay Flat Hose for Irrigation and Shale Gas Develop

200 Meters TPU Lay Flat Hose for Irrigation and Shale Gas Develop

200 Meters TPU lay flat hose for Irrigation and shale gas develop Cover and Lining: PU, Ribbed cover or smooth cover Rei
Basic Info
Material TPU
Capability Rubber Oil Hose
Color Black
Size 2′′ to 16′′
Transport Package Cartons/ Pallet
Specification ZY Tank Truck Hose
Trademark ZYfire
Origin China
HS Code 40093100
Production Capacity 1000000m/Month
Product Description

200 Meters TPU lay flat hose for Irrigation and shale gas develop

Cover and Lining: PU, Ribbed cover or smooth cover Reinforcement Jacket: High-tenacity synthetic jacket Color: Blue, Green, Black, Red, Green Application: Irrigation, Pumping of sludge and liquid fertilizers, supply or drag hose Available length: 30m (100ft), 61m(200ft), 91.5m (300ft), 100m (330ft) 200m(660ft), 300m(990ft), 400m(1320ft), also can be customized according to requirements Available Internal Diameters: 2'', 3'', 4'', 6'', 8'', 10'', 12'', 14'', 16''

This hose is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines. The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.

Extra abrasion resistance for rugged terrain and extreme conditions Resistant to oil and chemical UV Stabilized Abrasion: 4000 DIN cycles

This hose can operate in a temperature range from -50 C deg to 80 C deg (-58 F deg to +176 F deg).

I.D.ToleranceWall ThicknessService PressureMinimum Burst PressureWeightElongation At WP%Expansion At WP%Temperature Range
inchmmmminchmmpsipsiLbs/ftTolerance lbs/ftKg/mTolerance kg/mmaxmax
2"5151-530.071±0.0081.8±0.22507500.28±0.0670.42±0.1≤1≤8-50 to +80 (-58 to +176)
3"7676-780.126±0.0123.2±0.32507500.64±0.0670.95±0.1≤1≤8
4"102102-104.50.11±0.0122.8±0.32006000.72±0.0671.08±0.1≤1≤8
4"102102-104.50.138±0.0123.5±0.32507500.94±0.0671.4±0.1≤1≤8
4"102125-127.50.138±0.0123.5±0.33009000.87±0.0671.3±0.1≤1≤8
5"125154-1570.165±0.0124.2±0.31503001.2±0.1341.8±0.2≤1≤8
6"152154-1570.118±0.0123±0.31504501.07±0.0671.6±0.1≤1≤8
6"152154-1570.15±0.0123.8±0.32507501.41±0.1342.1±0.1≤1≤8
6"152154-1570.165±0.0124.2±0.33009001.74±0.2012.6±0.2≤2≤8
6"152154-1570.228±0.0165.5±0.464012302.11±0.2013.15±0.3≤2≤8
6"152154-1570.228±0.0165.6±0.472518302.14±0.1343.5±0.3≤2≤8
8"204204-2070.15±0.0123.8±0.32006001.94±0.1342.9±0.2≤1≤10
8" 250
8"204204-2070.177±0.0164.5±0.43009002.28±0.1343.4±0.2≤1≤10
10"254256-2590.165±0.0164.2±0.42006002.75±0.2014.1±0.2≤1≤10
10" 250
10"254256-2590.197±0.0165.0±0.43009003.75±0.2015.6±0.3≤2≤8
12"306306-3110.165±0.0164.2±0.41504503.33±0.2014.97±0.3≤1≤8
12"306306-3110.228±0.01975.8±0.52006004.3±0.2016.4±0.3≤2≤8
14"356356-3600.205±0.01975.2±0.51504504.96±0.2017.4±0.3≤1≤8
16"406406-4100.205±0.01975.2±0.51503005.09±0.2017.6±0.3≤1≤10
